结构轻型紧凑，安装使用方便。
压入式自锁机构，可防止调定压力受外界干扰而产生异动。
压力损失小，分水效率高。
透明视察罩，可直接观察滴油量大小。
除标准形式外，另有低压型可供选择(最高可调压力为0.4MPa)。

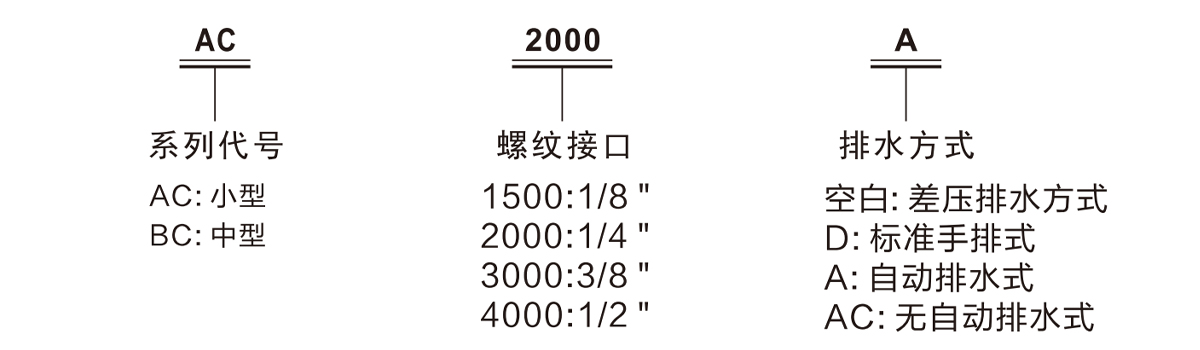

| 型号 | C-AC1500 | C-AC2000 | C-BC2000 | C-BC3000 | C-BC4000 | |
| Constitute | Filter-regulator | C-AF1500 | C-AF2000 | C-BF2000 | C-BF3000 | C-BF4000 |
| Regulator | C-AR1500 | C-AR2000 | C-BR2000 | C-BR3000 | C-BR4000 | |
| Lubricator | C-AL1500 | C-AL2000 | C-BL2000 | C-BL3000 | C-BL4000 | |
| □径(PT) | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | |
| 流体 | 空气 | |||||
| Proof Pressure | 1.5Mpa(213psi) | |||||
| Max Pressure | 0.95Mpa(135psi) | |||||
| 温度范围 | 5~60℃ | |||||
| Filtering Grade | 40μm | |||||
| Recommended 给油 | ISOVG32 or equivalent | |||||
| Pressure范围 | 0.05~0.85Mpa(7~121psi) | |||||
| Capacity Of Drain Bowl | 15CC | 60CC | ||||
| Capacity Of Oil Bowl | 25CC | 90CC | ||||
| 重量(Kg) | 0.7 | 0.9 | ||||
| Main 材质 |
阀体 材质 | 铝合金 alloy | ||||
| Bowl 材质 | PC | |||||
| Bonnet 材质 | C-AC1500~C-AC2000:Without C-BC2000~C-BC4000:With(Plastic) | |||||
